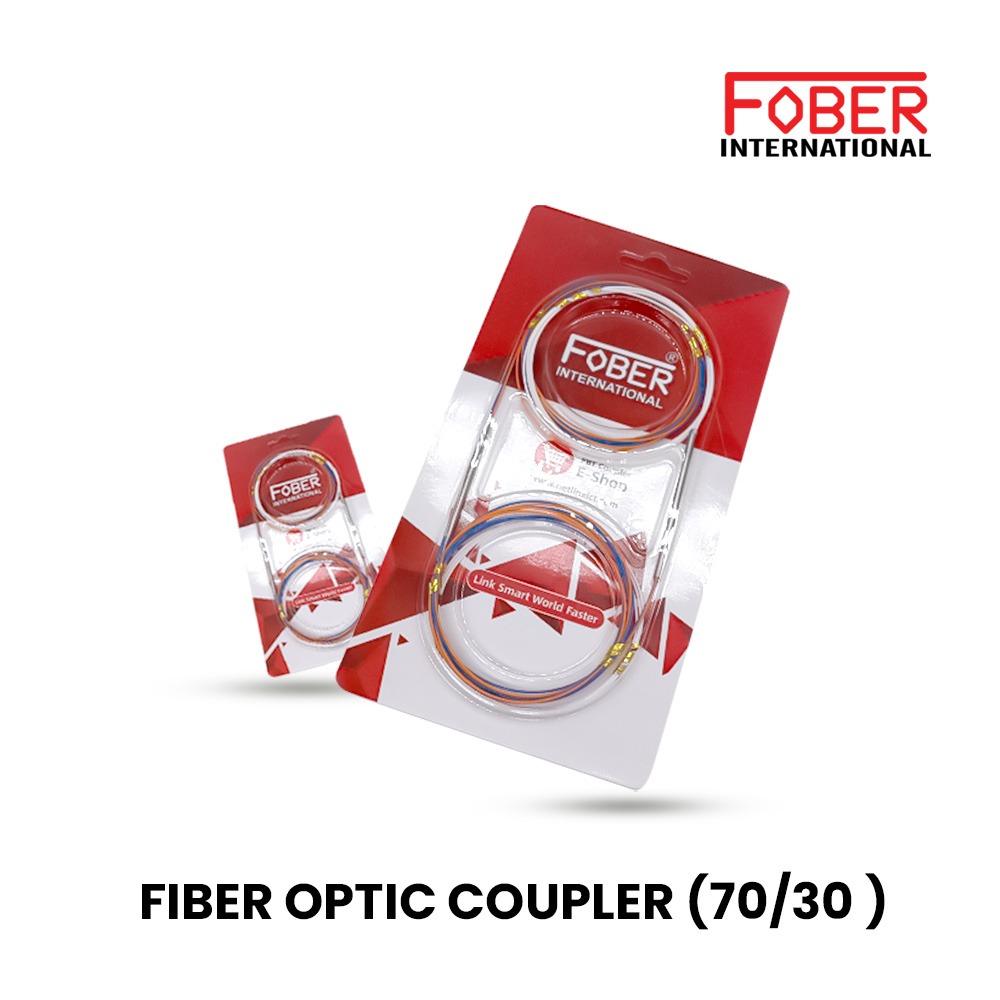

What is an FBT Coupler?
An FBT (Fused Biconical Taper) coupler is a passive optical device that allows the splitting or combining of optical signals in fiber optic communication systems. Its design is based on the principle of fusing and tapering two or more optical fibers together to facilitate the transfer of light between them. This enables efficient signal distribution without the need for external power sources or electronic components.
How FBT Couplers Work:
FBT couplers operate on the principle of power splitting through evanescent field coupling. When two or more fibers are fused and tapered, their cores come in close proximity, and the evanescent fields interact, leading to power transfer between the fibers. The ratio of power distribution is determined by the tapering ratio, which can be customized for specific applications.
Key Features and Advantages:
Excellent Signal Uniformity: FBT couplers provide high signal uniformity, ensuring equal power distribution among output fibers, critical for maintaining network stability.
Wide Wavelength Range: These couplers can work across a broad spectrum of wavelengths, making them suitable for various fiber optic systems.
Low Insertion Loss: FBT couplers exhibit minimal insertion loss, reducing signal attenuation and maintaining signal integrity.
Compact and Cost-effective: The simplicity of FBT coupler fabrication results in cost-effective solutions that take up minimal space in network infrastructure.
FBT Coupler Applications:
Passive Optical Networks (PON): FBT couplers are extensively used in PON systems to split signals for multiple users, providing reliable internet and telecommunication services.
Optical Fiber Sensors: They play a crucial role in distributing light signals to multiple sensors, finding applications in environmental monitoring, security systems, and industrial processes.
Test and Measurement: FBT couplers are used in optical test equipment to divide and redirect light signals for analysis and performance testing.
FBT Couplers vs. PLC Splitters:
It’s essential to differentiate between FBT couplers and PLC (Planar Lightwave Circuit) splitters, as both serve similar functions. We will compare their features, advantages, and suitability for specific applications, helping readers make informed decisions.
Factors to Consider When Choosing FBT Couplers:
Split Ratio: Depending on the application, choosing the appropriate split ratio is crucial for optimal signal distribution.
Operating Wavelength: Consider the wavelength range that your system requires to ensure compatibility with the FBT coupler.
Environmental Considerations: FBT couplers may be exposed to varying environmental conditions, so selecting rugged and reliable options is essential.
Installation and Maintenance Tips:
Proper installation and regular maintenance are vital for the efficient performance of FBT couplers. We’ll provide expert tips and best practices to extend their lifespan and optimize their functionality.
|Specifications||Required ratio %||I L(dB)||PDL(dB)|
