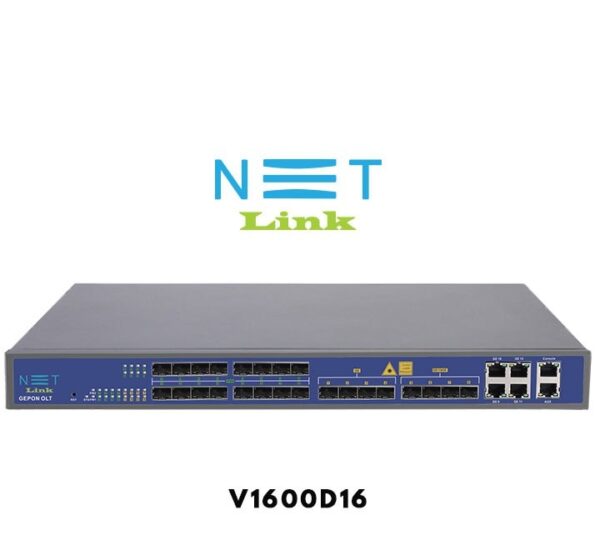

NETLINK GEPON OLT – 16 PORT – LAYER 3( V1600D16 )

Availability:

Available on backorder

Add to Wishlist
Compare

FOR TRADE ENQUIRY AND PURCHASE PLEASE CONTACT US (click here)

8 SFP(Fiber) + 4GE(RJ45)Uplink
Key Features

  • Support High Performance Layer 3 Switching
  • Support Netcare app
  • Fast ONU Register
  • Credit Time Control
  • ONT Auto Detect and ONT Firmware Auto Up-grade
  • WEB/CLl/EMS Management

Download Datasheet

*GST will be add extra at checkout

Add to Wishlist
Compare

Item

V1600D16

 Chassis

 Rack

 1U 19 inch standard box

 1000M
 Uplink Port

 QTY

 12

 Copper 4*10/100/1000M auto-negotiation
 SFP
(independent)		 8*SFP Or 4*SFP and 4*SFP+ slots (SFP+ is 10GE port

 EPON Port

 QTY 16
 Physical  Interface SFP Slots
Connector Type 1000BASE-PX20+
 Max splitting  ratio 1:64
 Management Ports 1*10/100BASE-T out-band port, 1*CONSOLE port

PON Port Specification

 Transmission  Distance

 20KM

 EPON port  speed

 Symmetrical 1.25Gbps

 Wavelength

 TX 1490nm, RX 1310nm

 Connector

 SC/PC

 Fiber Type

 9/125μm SMF

 TX Power

 +2~+7dBm

 Rx Sensitivity

 -27dBm

 Saturation  Optical Power

 -6dBm
 Management Mode SNMP, Telnet and CLI
 Management Function

 Fan Group Detecting; 16 port OLT
Port Status monitoring and configuration management;
Layer2 switch configuration such as VLAN,  Trunk,RSTP,IGMP,QOS, etc;
EPON management function: DBA,ONU authorization,  ACL,QOS,etc;
Online ONU configuration and management;
User management;
Alarm management.

 Layer2 Switch Support port VLAN and protocol VLAN;
Support 4096 VLANs;
Support VLAN tag/Un-tag ,VLAN transparent transmission, QinQ;
Support IEEE802.3d trunk;
Support RSTP;
QOS based on port,VID,TOS and MAC address;
IGMP Snooping;
IEEE802.x flow control;
Port stability statistic and monitoring.
 Layer 3Route 1024 Host Routes;
512 Subnet Routes;
256 IP Multicast Groups;
 EPON Function

 Support port-based rate limitation and bandwidth control;
In compliant with IEEE802.3ah standard;
Up to 20KM transmission Distance;
Support data encryption, multi-cast, port VLAN,  separation,RSTP,etc;
Support Dynamic Bandwidth Allocation (DBA);
Support ONU auto-discovery/link detection/remote upgrade of  software;
Support VLAN division and user separation to avoid broadcast  storm;
Support various LLID configuration and single LLID configuration;  Different user and different service could provide different QoS  by means of different LLID channels;
Support power-off alarm function, easy for link problem  detection;
Support broadcasting storm resistance function;
16 port OLT Support port isolation between different ports;
Support ACL and SNMP to configure data packet filter flexibly;
Specialized design for system breakdown prevention to maintain  stable system;
Support dynamic distance calculation on EMS online;
Support RSTP,IGMP Proxy.

 Dimension(L*W*H) 442mm*320mm*43.6mm
 Weight 6.5kg
 Power Supply 220VAC AC:90~264V, 47/63Hz
 Power Consumption 102W
 Operating Environment Working  Temperature -10~+55℃
 Storage  Temperature -40~+85℃
 Relative  Humidity 5~90%(non-conditioning)
