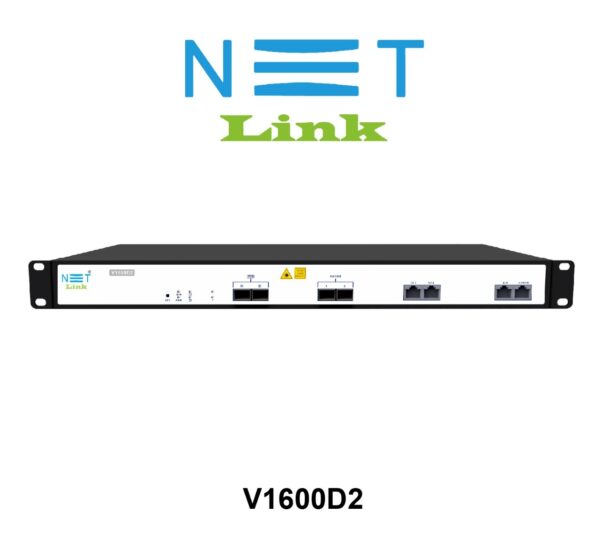

NETLINK GEPON OLT-2PORT-LAYER3(V1600D2)

Availability:

Available on backorder
Add to Wishlist
Compare

FOR TRADE ENQUIRY AND PURCHASE PLEASE CONTACT US (click here)

2SFP(FIBER) + 2GE(RJ45) UPLINK
Key Features

  • Support high performance layer 3 switching
  • Support Netcare app
  • Fast ONU Register
  • Credit Time control
  • ONU auto detect and ONU firmware auto upgrade
  • Up to 22GE uplink
  • WEB/CLI/EMS management

*GST will be add extra at checkout

₹23,010.00 ₹24,780.00

Available on backorder

Add to Wishlist

Specification

Item

V1600D2

 Chassis

  Rack

 1U 19 inch standard box
 1000M
 Uplink Port

 QTY

 4
 Copper  2*10/100/1000M auto-negotiation
 SFP
(independent)		  2*SFP slots

 EPON Port

  QTY  2
 Physical  Interface  SFP Slots
Connector Type  1000BASE-PX20+
 Max splitting  ratio  1:64
 Management Ports  1*10/100BASE-T out-band port, 1*CONSOLE port

PON Port Specification

 Transmission  Distance

  20KM

 EPON port  speed

  Symmetrical 1.25Gbps

 Wavelength

  TX 1490nm, RX 1310nm

 Connector

  SC/PC

 Fiber Type

  9/125μm SMF

 TX Power

  +2~+7dBm

 Rx Sensitivity

  -27dBm

 Saturation  Optical Power

  -6dBm
 Management Mode  SNMP, Telnet and CLI
 Management Function

 Fan Group Detecting;
Port Status monitoring and configuration management;
Layer2 switch configuration such as VLAN,  Trunk,RSTP,IGMP,QOS, etc;
EPON management function: DBA,ONU authorization,  ACL,QOS,etc;
Online ONU configuration and management;
User management;
Alarm management.
 Layer2 Switch  Support port VLAN and protocol VLAN;
Support 4096 VLANs;
Support VLAN tag/Un-tag ,VLAN transparent transmission, QinQ;
Support IEEE802.3d trunk;
Support RSTP;
QOS based on port,VID,TOS and MAC address;
IGMP Snooping;
IEEE802.x flow control;
Port stability statistic and monitoring.
 Layer 3Route  1024 Host Routes;
512 Subnet Routes;
256 IP Multicast Groups;
 EPON Function

 Support port-based rate limitation and bandwidth control;
In compliant with IEEE802.3ah standard;
Up to 20KM transmission Distance;
Support data encryption, multi-cast, port VLAN,  separation,RSTP,etc;
Support Dynamic Bandwidth Allocation (DBA);
Support ONU auto-discovery/link detection/remote upgrade of  software;
Support VLAN division and user separation to avoid broadcast  storm;
Support various LLID configuration and single LLID configuration;  Different user and different service could provide different QoS  by means of different LLID channels;
Support power-off alarm function,easy for link problem  detection;
Support broadcasting storm resistance function;
Support port isolation between different ports;
Support ACL and SNMP to configure data packet filter flexibly;
Specialized design for system breakdown prevention to maintain  stable system;
Support dynamic distance calculation on EMS online;
Support RSTP,IGMP Proxy.
 Dimension(L*W*H)  442mm*200mm*43.6mm
 Weight  3.1kg
 Power Supply  220VAC  AC:90~264V, 47/63Hz
 Power Consumption  25W
 Operating Environment  Working  Temperature  -10~+55℃
 Storage  Temperature  -40~+85℃
 Relative  Humidity  5~90%(non-conditioning)
